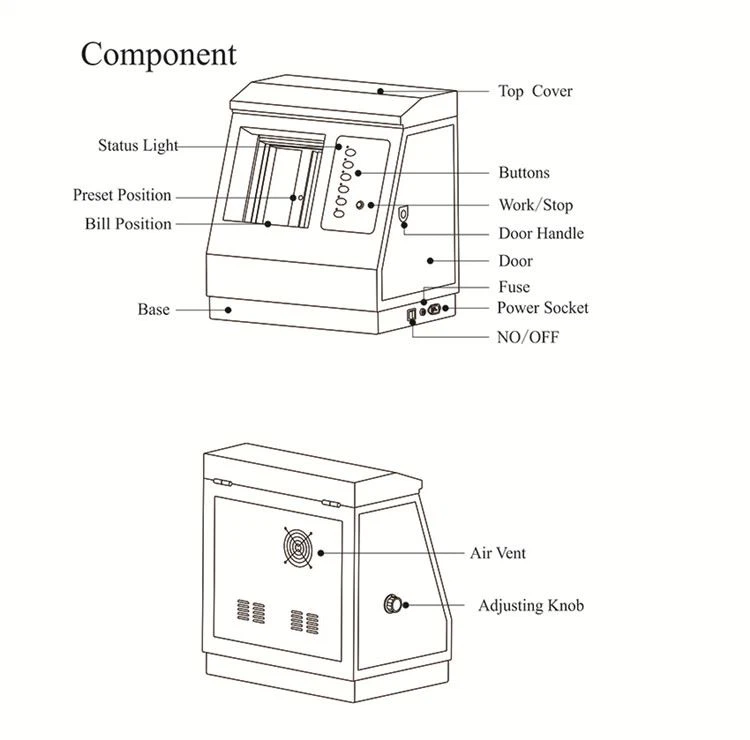

The banknote binding machine is developed to address the problems that the existing banknote binding machine lacks currency value adjustment, safety protection and fault detection, which brings inconvenience to users. It is mainly composed of paper money turning manipulator, currency value adjustment device, mechanical pressing device, sticking and cutting device, cross sticking device, tape running device, automatic take-up mechanism, safety protection, fault alarm device and dust removal device. It can quickly complete the functions of pressing, binding, turning, sticking and cutting a large number of banknotes. It can be widely used in bundling a large number of banknotes in finance, securities and other industries.
Status of use
The banknote binding machine is an optical-mechanical integration product. It is a banknote binding device developed to solve the problem of banknote binding in the financial system. It automatically completes the processes of pressing, binding, (replacement,) hotting, etc. Thereby greatly improving work efficiency and automated office procedures.
The main types of banknote binding machines are fully automatic banknote binding machines and semi-automatic banknote binding machines. The difference is that the automatic banknote binding machine is to place the banknotes in position at one time. After pressing the work button, the binding can be completed without turning and repeated pressure. And the speed is faster, generally less than 20 seconds per bundle, and some manufacturers' models can complete the bundle in 13-14 seconds. The semi-automatic banknote bundling machine is where the banknotes are placed and positioned. After pressing the work button, it requires two manual turns to complete the bundling, and the speed is slow. Generally, each bundling takes 35 seconds, and some can reach less than 28 seconds.
The latest type of banknote binding machine adopts microcomputer control, using the most advanced non-contact hot-scaling method, one-time compaction, three bindings are completed, and the shape is smoother, avoiding multiple banknote pressing, and truly protecting the coins from damage. The machine has an intelligent man-machine dialogue function, the working status is clearly displayed, and the fault screen is automatically prompted. Closed strapping, simple operation, safe and reliable. Because the three lanes are bundled at the same time during work, there is no need to index, so the speed is faster. The unique external cassette device makes it easier to replace the strapping, which reduces the work intensity of the operator and improves the work efficiency. It is an ideal financial office automation equipment.
Features
■High degree of automation: three bindings are completed at one time, and coins are placed at one time, no need for transposition;
■ Double ten plane bonding: two-way non-contact scalding, large scalping area and high safety factor;
■ Faster strapping speed: nearly twice the speed of common models, which saves time;
■ Bundling and forming flat: one-time bundling, which is more flat, standardized, firm and beautiful, and meets the requirements of the People's Bank of China's "Five Good Money Bundles";
■ Self-adaptive adjustment of ironing temperature: The temperature does not need to be adjusted manually, and the equipment itself can adjust the ironing temperature by itself;
■ More energy-saving strapping: complete the strapping forming at one time, and the power consumption of one hundred bundles is less than 0.2Kw.h;
■ The strapping pressure is adjustable: the pressure can be adjusted by itself to adapt to coins of different levels of old and new;
■ Pre-pressing function of old banknotes: to ensure normal binding of old banknotes;
■ External cassette device: no need to load and unload the cassette, it is easier to replace the strapping;
■ Operation of loading paper pads: it conforms to the working methods of bank operators and is more convenient;
■ Large LCD screen: intelligent man-machine dialogue, clear display of work process, and automatic prompts for faults on the screen;
■ Domestic general consumables: domestic white transparent plastic strapping, low cost.
Environmental performance
■ Environmental protection, smokeless and odorless: non-contact scalding method, no preheating, the scalding process is smokeless, odorless, and more environmentally friendly;
■ Low noise during work: low-noise motor is adopted, which meets environmental protection requirements.
Safety performance
■ Closed strapping operation: automatic door closing and closed strapping, absolutely guarantee the safety of operation;
■ Safety protection device: automatic fault detection, shutdown alarm.
Machinery Classification
The banknote binding machine is an office item in the financial system. Its function is to pack the banknotes? One hundred banknotes into one, bundle each ten banknotes into one bundle, so as to facilitate the counting, transportation and storage of the banknotes. Domestic banknote binding machines are mainly divided into three categories.
First category
It is mechanical, that is, it is manually bundled after being pressed by a lever, screw or hydraulic machinery, so the staff is labor intensive and the operation is not standardized.
Second category
It is semi-automatic, that is, one or two consecutive actions are realized by computer control, and then the bundle of banknotes is completed with the cooperation of the staff.
The third category
The banknote binding machine is fully automatic. The staff puts the bundled cash on the workbench and presses the automatic binding button, the automatic banknote binding machine will complete all actions. The use of a fully automatic method can truly liberate the operator from repetitive labor and greatly improve efficiency.
Most of the banknote bundling machines used in the financial sector are three-point semi-automatic banknote bundling machines. Because the three-point bundling opportunity causes the phenomenon of losing cash, the financial sector requires the banknote bundling machine to achieve five-point bundling of cash. Based on the above reasons, a five-point automatic banknote binding machine has been developed, which has achieved good results in practical applications.
